LFD-BS2
LONGSN
Each set of this Series bottle blow machine is composed by two parts: Bottle Blower and Infrared Preform Oven.Suitable for various PET bottles from 20ml to 2L, wide range of application. Infrared heaters, independently adjustable, simple structure, stable running.

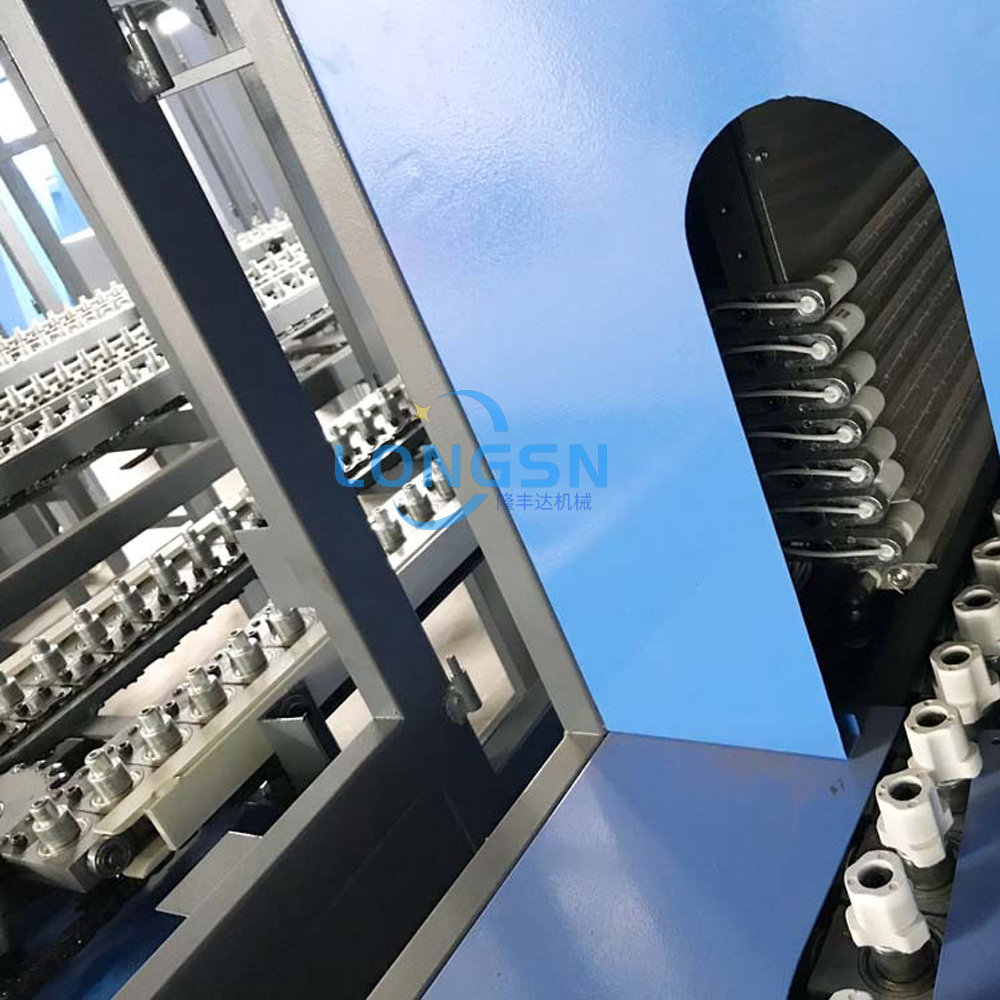

Infrared Preform Oven: heat the PET preform to suitable soft condition for blowing;
Specifications
| Models | LFD-2L2 | LFD-2L4 | LFD-5L-1 | LFD-5L-2 | LFD-20L | |
| Theoretical Capacity(BPH) | 800~1,000 | 1,600~2,000 | 350~400 | 700~800 | 60~240 | |
| Mold Cavities | 2 | 4 | 1 | 2 | 1 | |
| Üveg | Max. Neck Size | 100mm | 100mm | 110mm | 110mm | 55mm |
| Max. Hangerő | 2000ml | 2000ml | 5000ml | 5000ml | 20000ml | |
| Max. Átmérő | 105mm | 105mm | 180mm | 180mm | 280mm | |
| Max. Magasság | 330mm | 330mm | 350mm | 350mm | 500mm | |
| Main Machine Size | 1680*950*1980mm | 2 main machine | 1900*650*1580 mm | 1900*800*1580 mm | 2500*800*1900 mm | |
| Fűtésméret | 1650*700*1700 mm | 1 fűtőberendezés | 2100*600*1350 mm | 2100*600*1350 mm | 2600*700*1580 mm | |
| Főgép súlya | 1500 kg | 2500 kg | 1700 kg | 1700 kg | 2400 kg | |
Each set of this Series bottle blow machine is composed by two parts: Bottle Blower and Infrared Preform Oven.Suitable for various PET bottles from 20ml to 2L, wide range of application. Infrared heaters, independently adjustable, simple structure, stable running.
Infrared Preform Oven: heat the PET preform to suitable soft condition for blowing;
Specifications
| Models | LFD-2L2 | LFD-2L4 | LFD-5L-1 | LFD-5L-2 | LFD-20L | |
| Theoretical Capacity(BPH) | 800~1,000 | 1,600~2,000 | 350~400 | 700~800 | 60~240 | |
| Mold Cavities | 2 | 4 | 1 | 2 | 1 | |
| Üveg | Max. Neck Size | 100mm | 100mm | 110mm | 110mm | 55mm |
| Max. Hangerő | 2000ml | 2000ml | 5000ml | 5000ml | 20000ml | |
| Max. Átmérő | 105mm | 105mm | 180mm | 180mm | 280mm | |
| Max. Magasság | 330mm | 330mm | 350mm | 350mm | 500mm | |
| Main Machine Size | 1680*950*1980mm | 2 main machine | 1900*650*1580 mm | 1900*800*1580 mm | 2500*800*1900 mm | |
| Fűtésméret | 1650*700*1700 mm | 1 fűtőberendezés | 2100*600*1350 mm | 2100*600*1350 mm | 2600*700*1580 mm | |
| Főgép súlya | 1500 kg | 2500 kg | 1700 kg | 1700 kg | 2400 kg | |
