Lsn-al2
LONGSN
8477800000

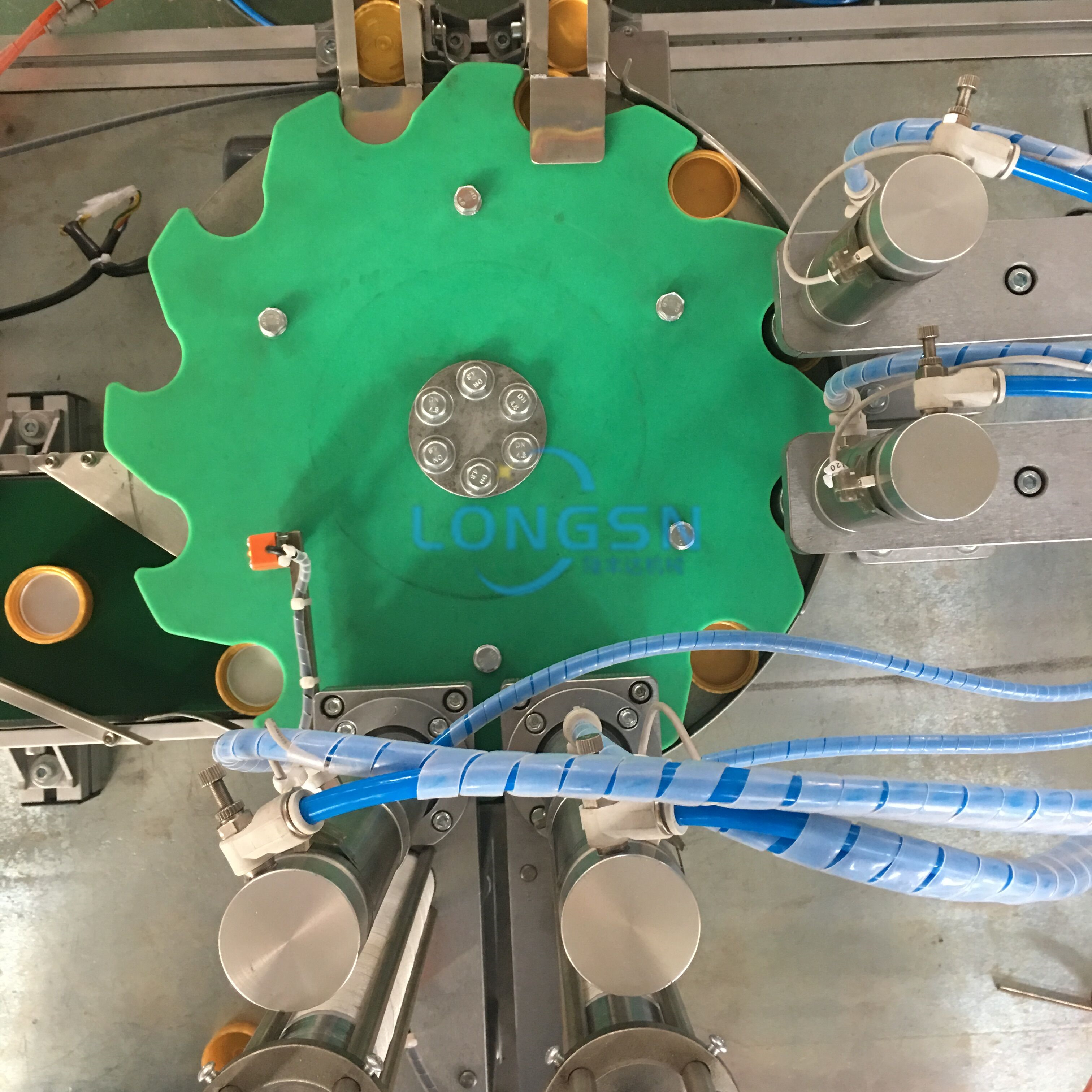

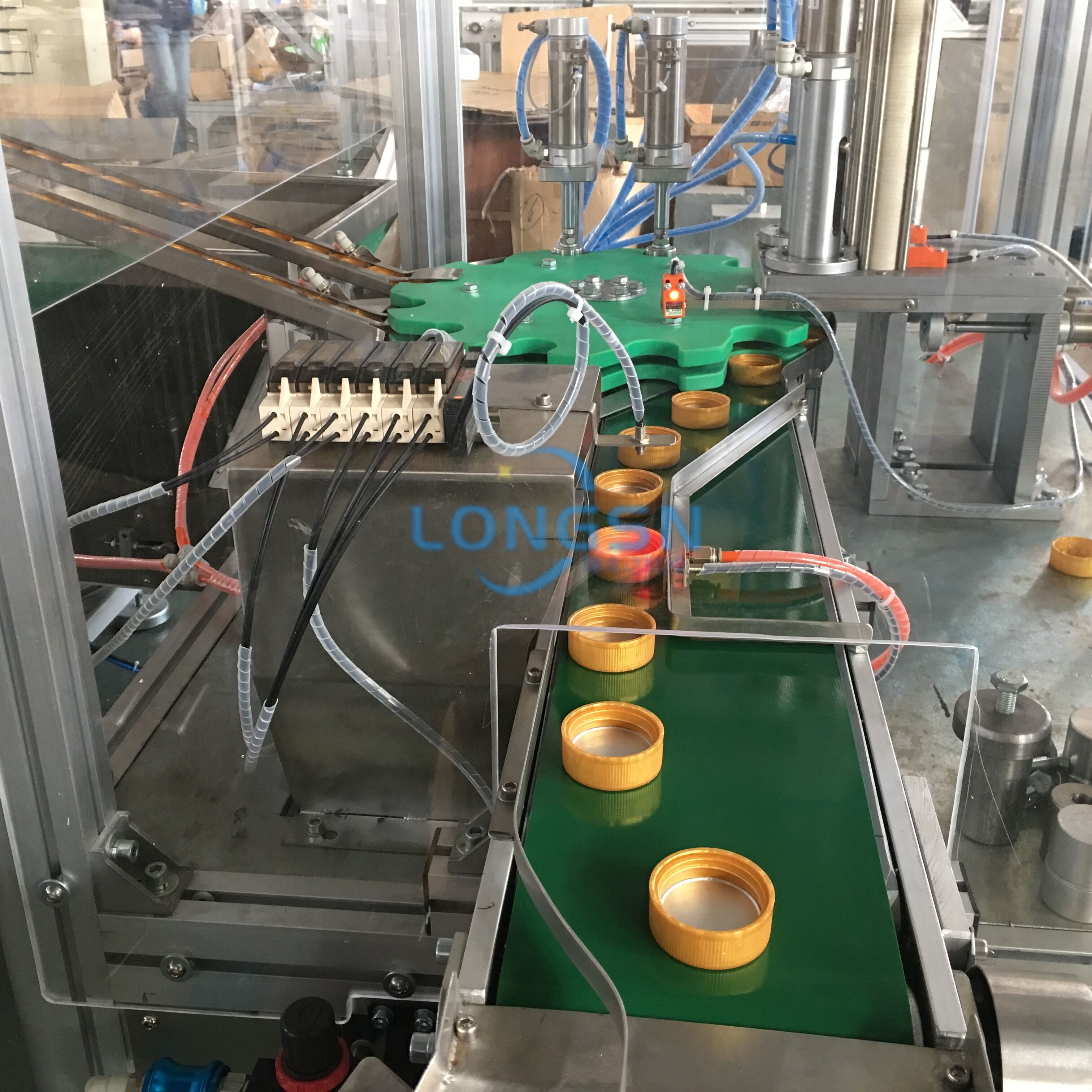

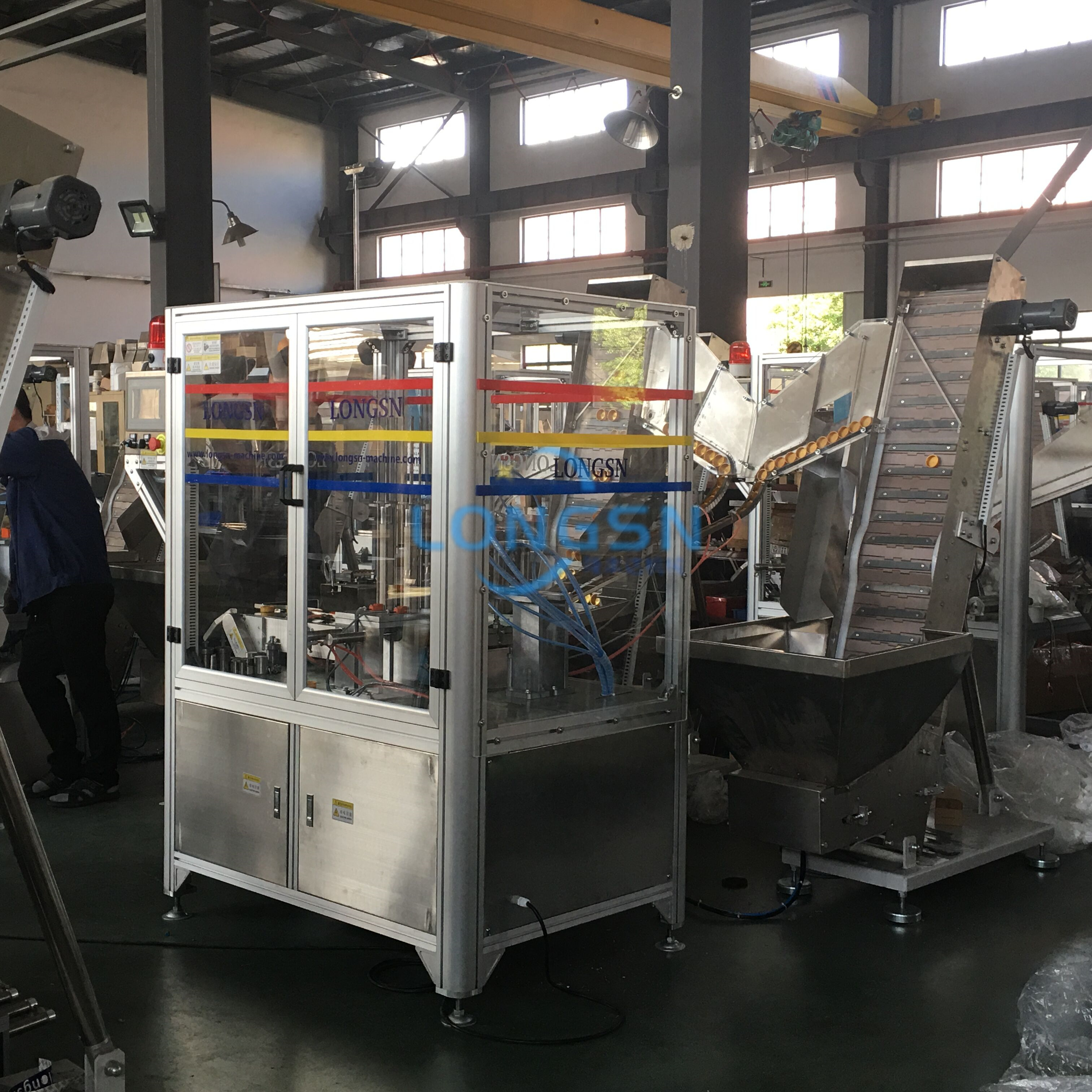

Auto Plastic Bottle Cap Assembly Liner Lining Machine
LONSGN automatic assembly Lining machine is designed for the caps which need both assembly and wadding . To assembly different parts into a complete cap and also insert the liner into cap TermelésProcessing:
lifting the caps — arranging the caps — conveying the caps — assembly and inserting the liner — counting the caps — dividing the caps into cartons.
Structural Composition of the Machine:
Cap lifting unit: the lifting unit can automatically convey caps into the cap arranging unit when there is no cap in the cap arranging unit.
Automatic cap arranging unit: it can arrange the caps to be orderly and make all caps with the mouths upward.
Cap conveying unit: accurately and orderly conveying the arranged caps to the turnplate;
Cap assembly unit: assembly parts together into one complete cap.

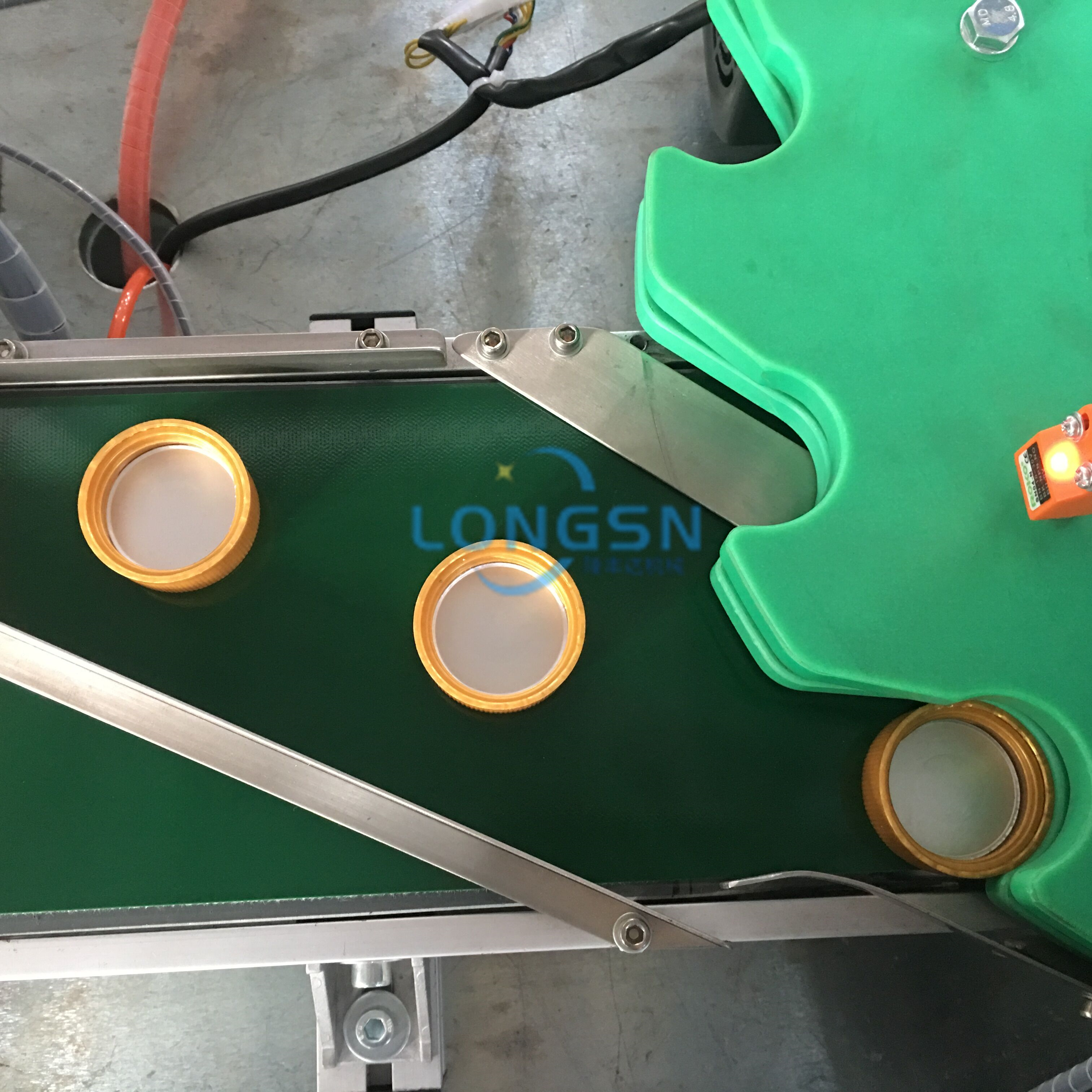

Liner inserting unit: insert the liner into the cap.
Liner checking unit: to reject out the defective caps .
Main configuration：
1 | Motor | ZhongDa /TAIWAN |
2 | laser-probe emission spectrometer | Autonics / Korea |
3 | PLC | Mitsubish/Japán |
4 | Érintőkijelző | WEINVIEW/TAIWAN |
5 | Kijelző | XINJIE /TAIWAN |
6 | Photoelectric sensor | Autonics / Korea |
7 | Pneumatikus elem | Airtac/Tajvan |
8 | Vákuumgenerátor | SMC / JAPÁN |
9 | Gomb | Schneider / Franciaország |
10 | elektromos váltó | Tender /Tajvan |
Paraméterek ：
Munkaerő | 2 állomás |
Méret | 2000 × 1050 × 1800 (mm) |
Súly | 700 kg |
Erő | 220/380V, 50/60Hz, 3 fázis, 300W |
Levegő nyomás | 4-5 KGF/CM2 |
Munkaarány (összeszerelési bélés) | 4500 ~ 5000PC/óra |
A sapka átmérőjére | 20 mm-50 mm |
Magasabb sapkát alkalmaznak | 5 mm-30 mm |
